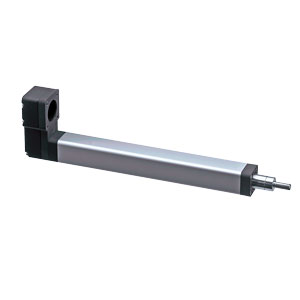

PC25PA078B10-0180CJ1-90

Linear Actuator, Precision, Ball screw drive, 180 mm Stroke, 10 mm move per rev, Parallel

Compact, robust and reliable

IP65 as standard

High precision ball nut

Stainless steel extension tube

Stainless steel male rod adapter

Single point lubrication

Large diameter ball screw

Smooth exterior profile

Mounting accessories according to pneumatic ISO standard

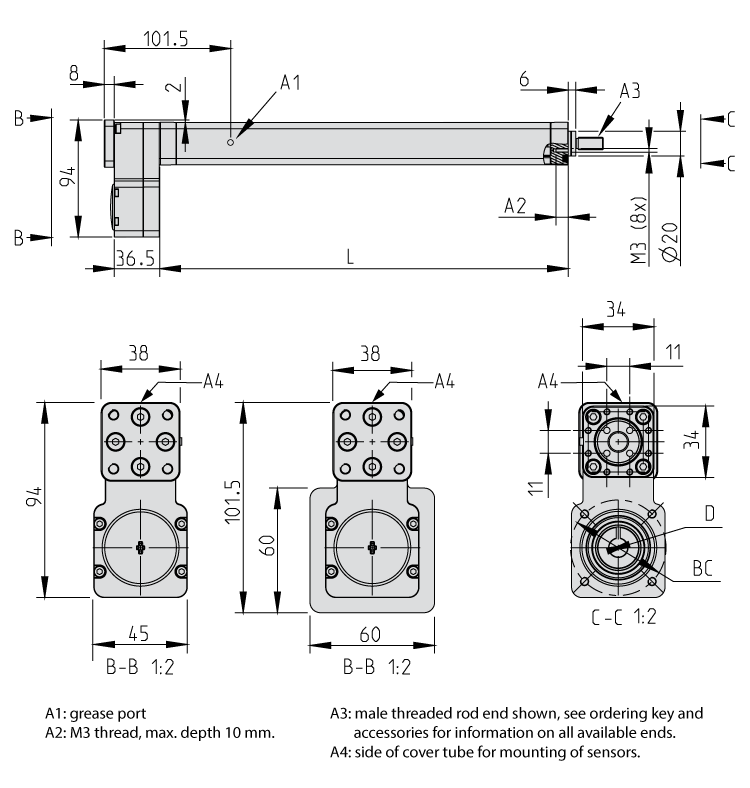

{tab title="DIMENSIONS" }

Dimensions  Value
[L]281.5 mm
Screw Diameter, Nominal10 mm
Shaft Configuration  Parallel
Smax (Stroke) 180 mm

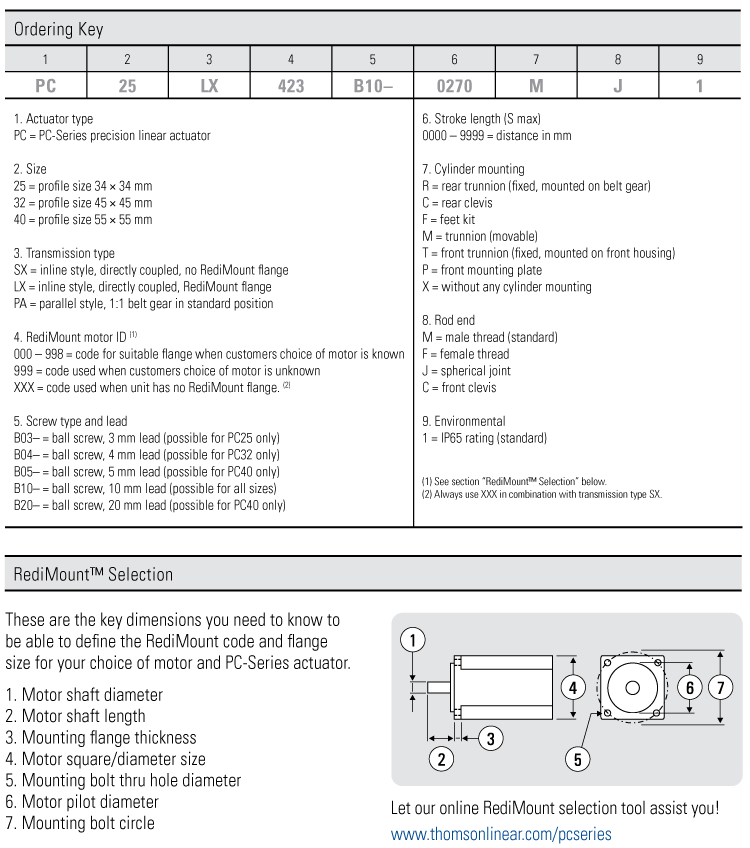

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
