MS25-200126

MS25LB0N0120-045N505A0B00

Linear Unit, Micro Stage, Continuously Supported MicroStage System, Lead Screw drive, Ball Guided, Preloaded Lead Screw, 25 mm Stroke, 0.050 in Lead,

Compact, lightweight package

Stainless steel leadscrew with anti-backlash nut offers precise
repeatability

Segmented linear bearings provide smooth motion

Corrosion resistant options available

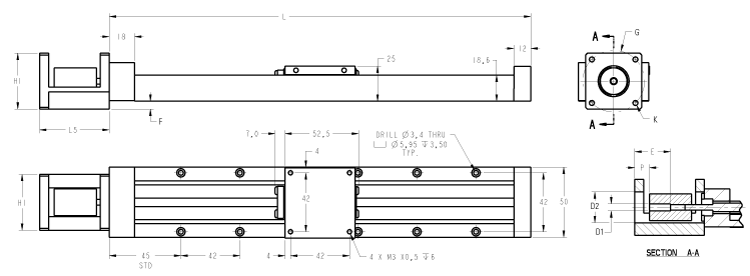

{tab title="DIMENSIONS" }

Dimensions  Value
[D1]5.0 mm
[D2]22.0 mm
[E] 28.0 mm
[F] 5.7 mm
[G] 43.8 mm
[H1]39.9 mm
[K] 0.136 mm
[L]120 mm
[LS] 0.050 in
[P] (BX}
Smax (Stroke)25 mm



{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
