MS33-200520

MS33LA0N0223-055N001A0A08

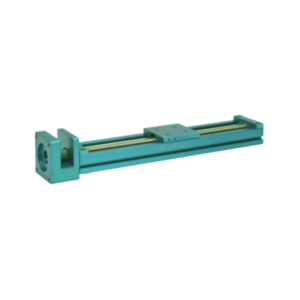

Linear Unit, Micro Stage, Continuously Supported MicroStage System, Lead Screw drive, Ball Guided, Preloaded Lead Screw, 127 mm Stroke, 0.025 in Lead,

Compact, lightweight package

Stainless steel leadscrew with anti-backlash nut offers precise
repeatability

Segmented linear bearings provide smooth motion

Corrosion resistant options available

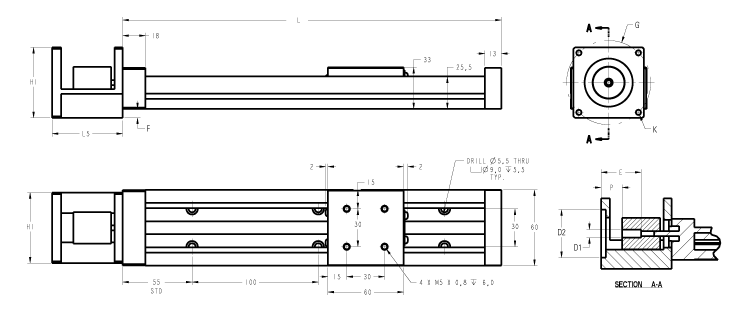

{tab title="DIMENSIONS" }

Dimensions  Value
[D1]6.35 mm
[D2]38.2 mm
[E] 33.0 mm
[F] 7.5 mm
[G] 66.7 mm
[H1]57.2 mm
[K]
[L]223 mm
[LS] 0.025 in
[P] (BX}
Smax (Stroke)127 mm

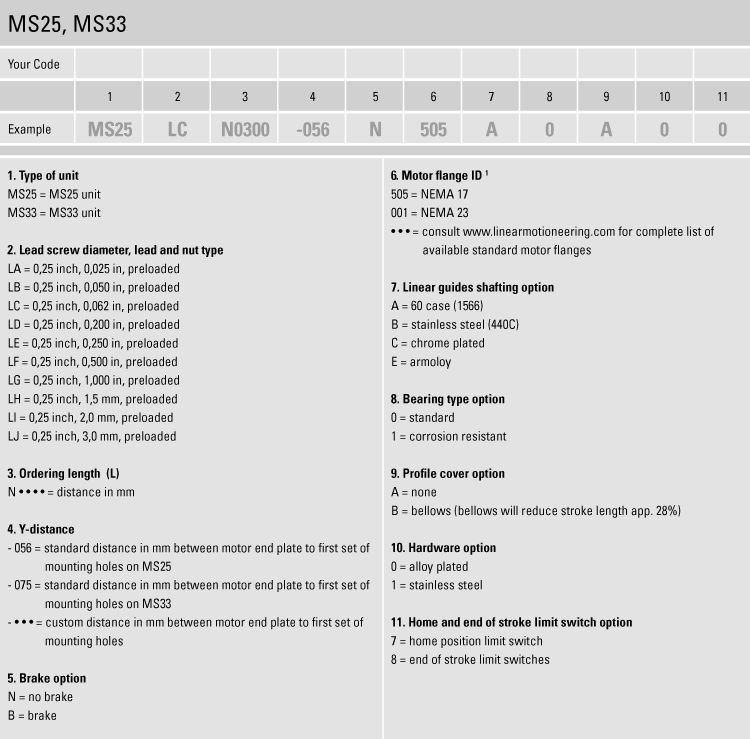

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page

{tab GET QUOTE}

Have a question? Make request
