6932-448-015

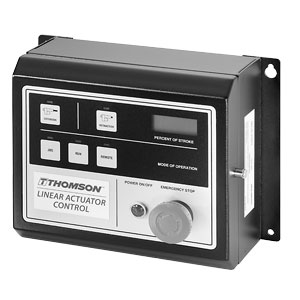

Actuator, MCS-2051 ACTUATOR CONTROL 120V

Control designed to operate an Electrak 205 actuator

Robust metal enclosure with front cover mounted membrane switches and LED indicator lights for extend, retract, jog, run and remote control

LCD display shows the ectension tube position

Internal "Run" mode jumper which causes the actuator to reverse automatically upon reaching the extend end of the stroke limit switch. Reverse motion continues until reaching the retract end of stroke limit switch

The control provides and analog output signal for an external customer provided control/meter

Inputs for external extend and retract switches

115Vac 50/60 Hz Input, NEMA 1

24 Vdc 8 Amp max, Actuator current, 4-20 mA Analog output signal

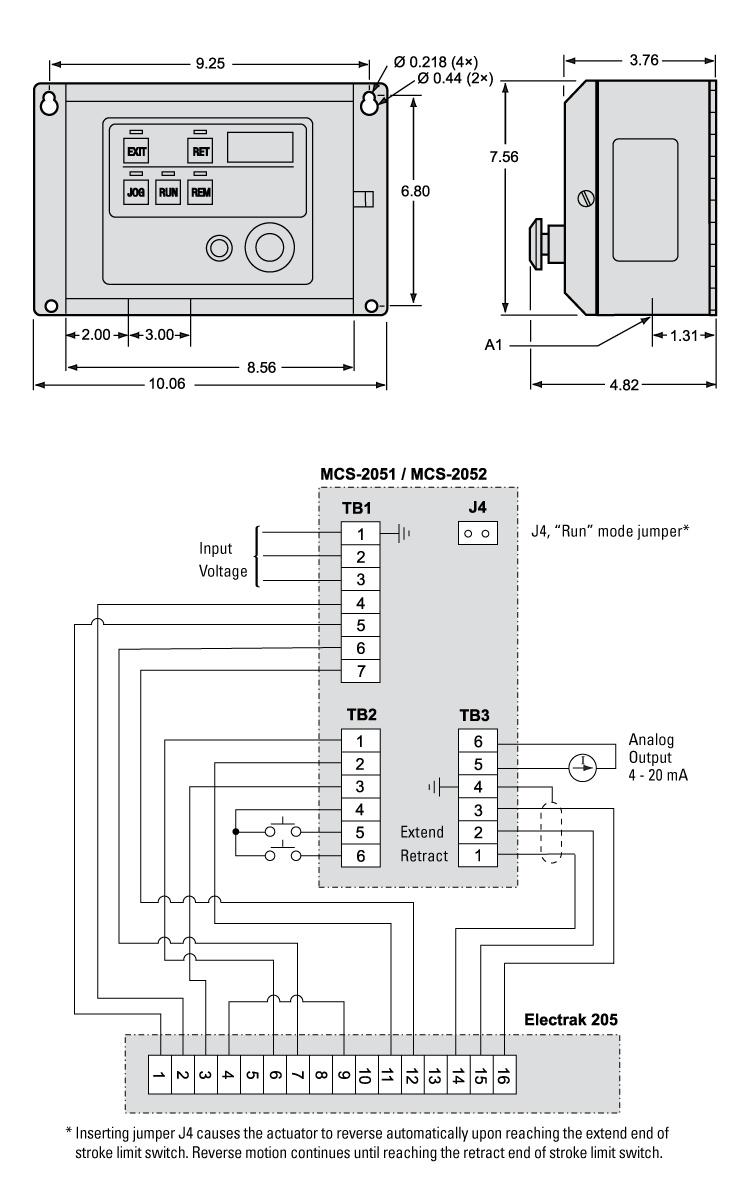

{tab title="DIMENSIONS" }
