6932-448-019

Actuator, MCS-2008, 230 Vac

Control designed to operate an Electrak 1SP actuator

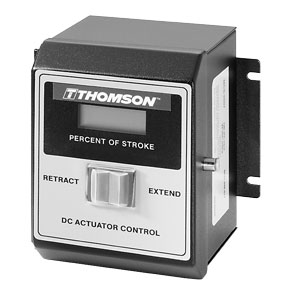

Robust and compact metal enclosure with a front panel extend and retract rocker switch

LCD display shos the extension tube position

The control provides an analog output signal for an External customer provided control/meter

Extend and retract limit switches are set by adjusting two trim pots in the control

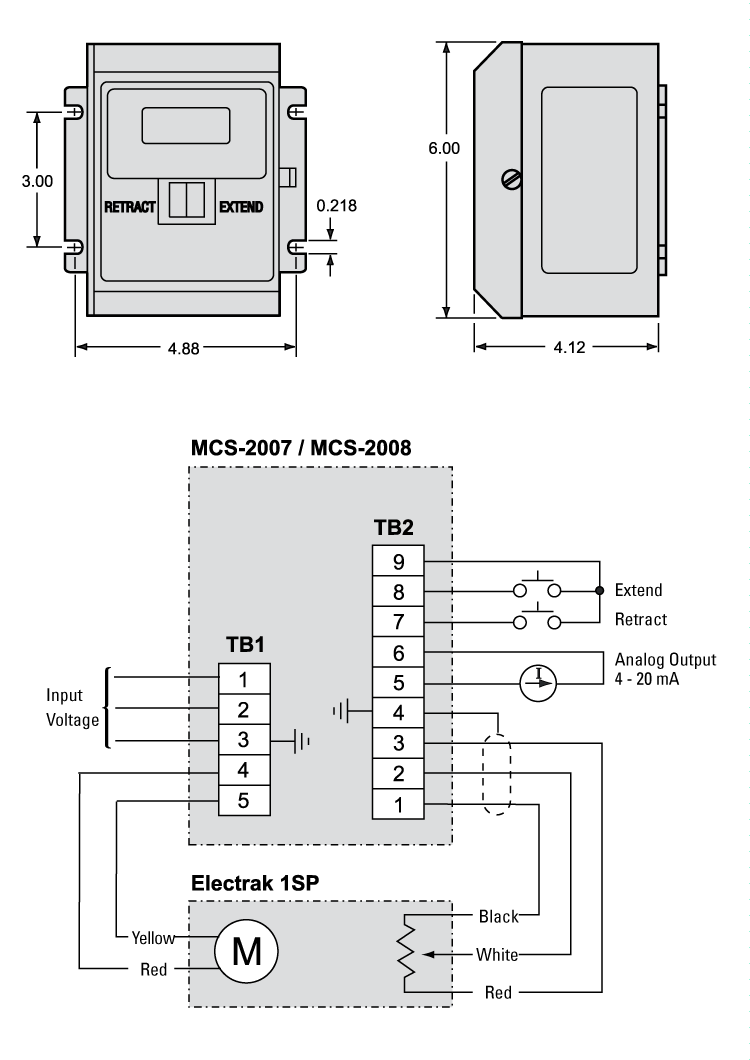

Terminal strip for easy electrical connection

230 Vac 50/60 Hz Input, NEMA 1

24 Vdc 2.8 Amp max, Actuator current. Output filtered, but unregulated. Output voltage varies from 20-30 Vdc, depending on Input Voltage
