D6932-448-010

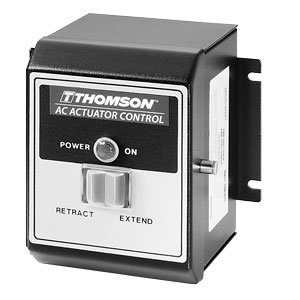

Actuator, MCS-2041 ACTUATOR CONTROL

Robust and compact metal enclosure with a front panel extend and retract rocker switch

Prewired internal capacitor

Fuse protexts actuator in case of stalling caused by overload

"Power On" light illuminates whenever power applied to control

Terminal Strip for easy electrical connection

The switch controls both the actuator motor and it's anti coast brake to provide optimum performance

115 or 230 Vac 50/60 Hz Input, NEMA 1

115 or 230 Vac 15 Amp max, Output current

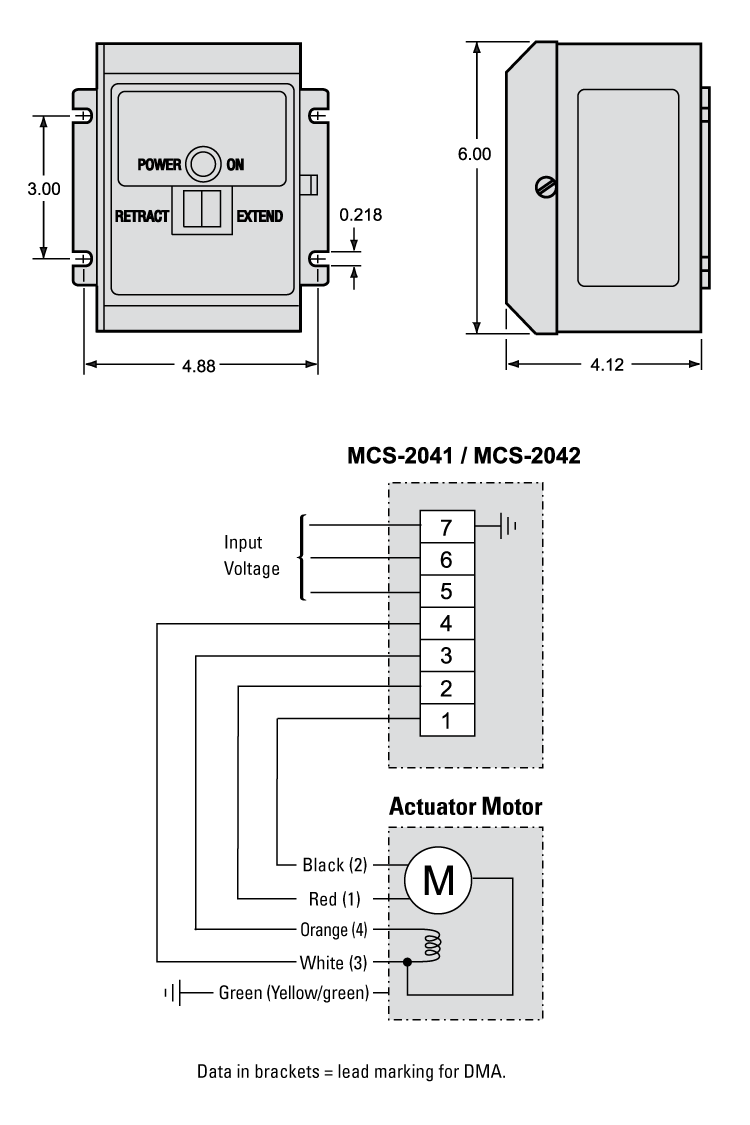

{tab title="DIMENSIONS" }

{tab GET QUOTE}

Have a question? Make request
