AA42-05B65M15M0BPO05

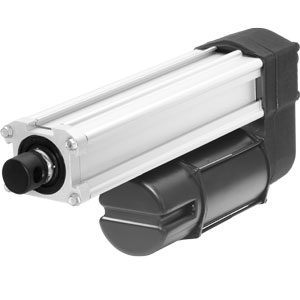

Actuator, LA24, 400 Vac, 2250 N Capacity, 150 mm Stroke,37 mm/s Travel rate,Ball Screw Screw drive

Robust, strong and reliable

Corrosion free aluminium cover tube

Stainless steel extension tube

Withstands very harsh environments

Trunnion mounting possible

Overload clutch for mid and end of stroke protection

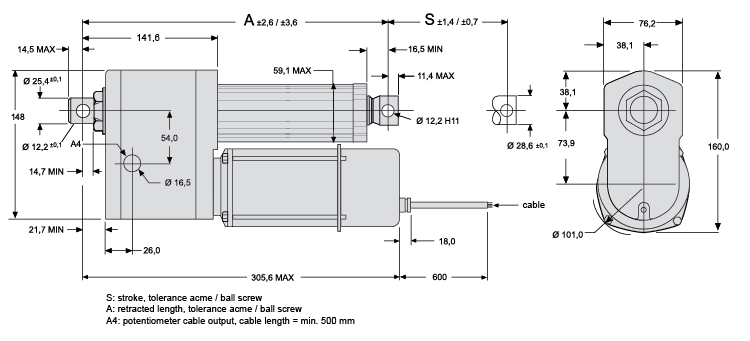

{tab title="DIMENSIONS" }

Dimensions  Value
[A]424.6 mm
[S]150 mm
Load, Dynamic2250 N
Load, Max Static18000 N
Travel Rate @ Full Load37 mm/s
Travel Rate @ no Load61 mm/s
Voltage400 Vac

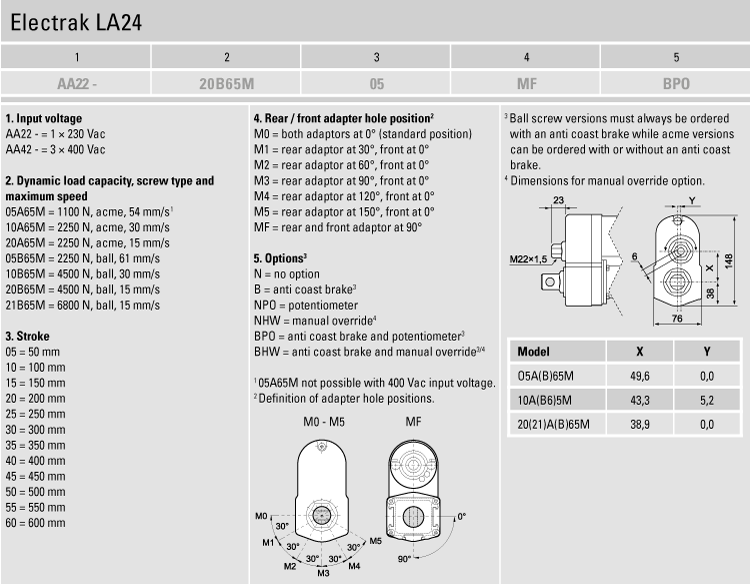

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
