DS12-17A08-0290
Actuator, Electrak 1, 12 Vdc, 340 N Capacity, 46.2 mm Stroke,17 mm/s Travel rate,Acme Screw drive
Very compact and lightweight
Available with end of stroke limit switches or Potentiometer feedback
Self-locking acme screw drive system
Maintenance free
Ideal for replacement of comparable size pneumatic and hydraulic cylinders

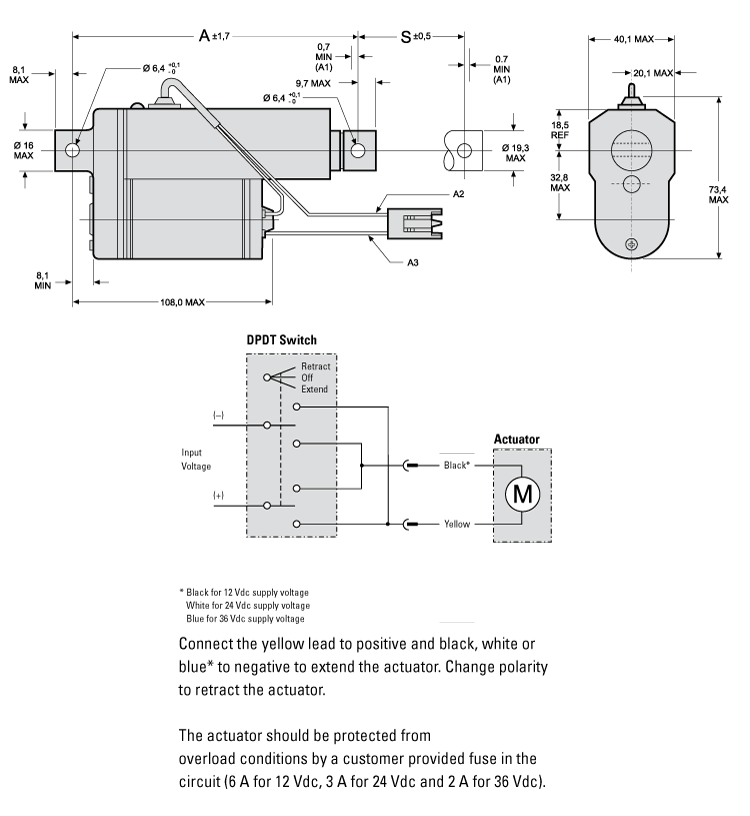

{tab title="DIMENSIONS" }
Dimensions | Value |
[A] | 159.9 mm |
[S] | 46.2 mm |
Load, Dynamic | 340 N |
Load, Max Static | 1300 N |
Travel Rate @ Full Load | 17 mm/s |
Travel Rate @ no Load | 26 mm/s |
Voltage | 12 Vdc |

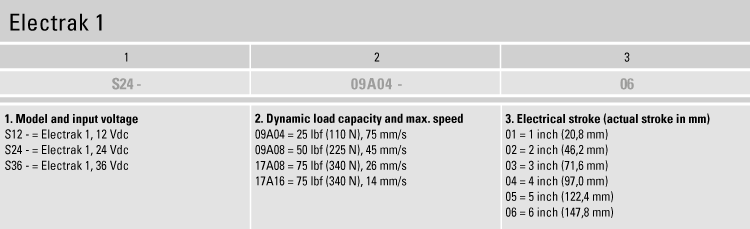

{tab ORDER CODE}
{tab TOOLS & LINKS}
{tab GET QUOTE}
Have a question? Make request
