D24-05B5-14M0N42

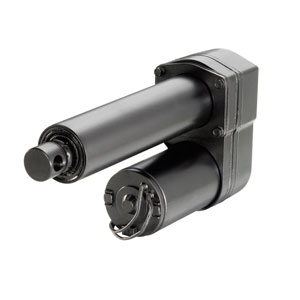

Actuator, Electrak 10, 24 Vdc, 2250 N Capacity, 355.6 mm Stroke,37 mm/s Travel rate,Ball Screw drive

Robust, strong and reliable

Stainless steel extension tube

Overload clutch for mid and end of stroke protection

Motor with thermal switch

Maintenance free

{tab title="DIMENSIONS" }

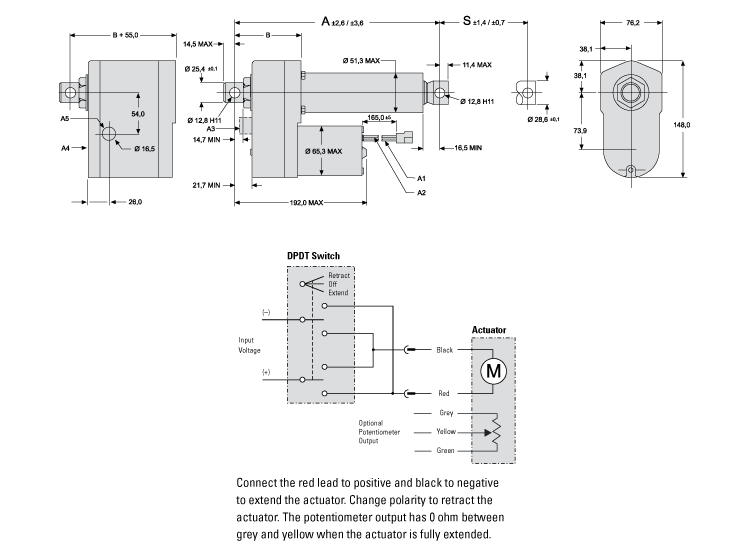

Dimensions  Value
[A]607.1 mm
[S]355.6 mm
Load, Dynamic2250 N
Load, Max Static18000 N
Travel Rate @ Full Load37 mm/s
Travel Rate @ no Load61 mm/s
Voltage24 Vdc



{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
