PPA24-18B65-36NX

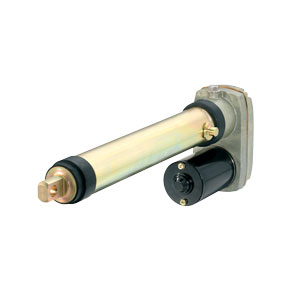

Actuator, PPA, 24 Vdc, 750 lbf Capacity, 36 in Stroke, 1.10 in/s Travel rate, Ball Screw drive

Strong and versatile heavy duty actuator

Highly efficient ball screw drive system

Overload clutch for mid and end of stroke protection

Motor with thermal switch

Maintenance free

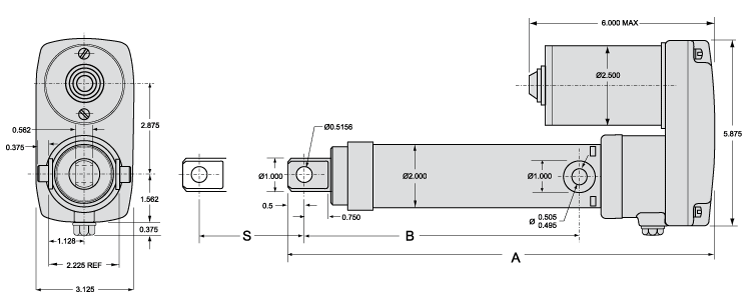

{tab title="DIMENSIONS" }

Dimensions  Value
[A]47.7 in
[B]42.8 in
[C]
[S]36 in
FeedbackNo Feedback
Load, Dynamic750 lbf
Load, Max Static3000 lbf
Travel Rate @ Full Load1.10 in/s
Travel Rate @ no Load1.26 in/s
Voltage24 Vdc

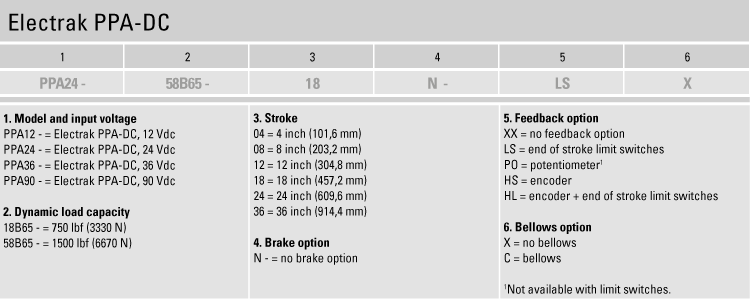

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
