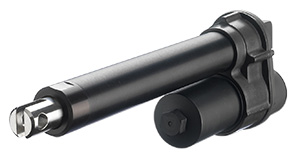

MX12-B8M25P0
Actuator, Max Jac, 12 Vdc, 800 N Capacity, 250 mm Stroke,30 mm/s Travel rate,Ball Screw drive
Designed for industrial applications
Rugged aluminum housing with IP69K
High efficiency
Hard coat anodizing for high corrosion resistance
Virtually maintenance free
Non contact analog position feedback signal

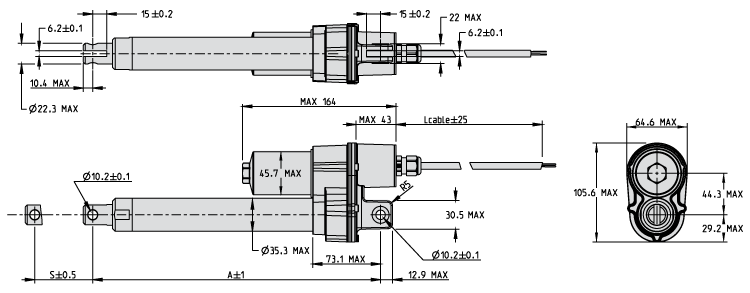

{tab title="DIMENSIONS" }
Dimensions | Value |
[A] | 406 mm |
[S] | 250 mm |
Load, Dynamic | 800 N |
Load, Max Static | 100 N |
Travel Rate @ Full Load | 30 mm/s |
Travel Rate @ no Load | 60 mm/s |
Voltage | 12 Vdc |

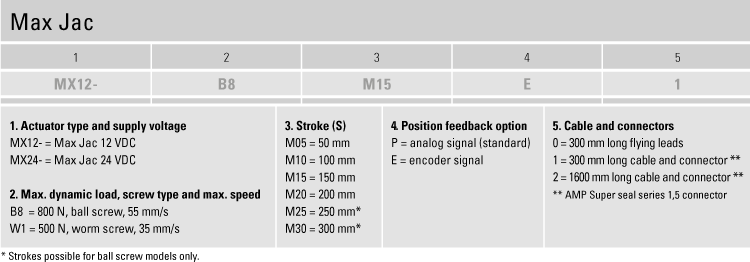

{tab ORDER CODE}
