ECT09-B53R03PB3220-0100FQ22XX-

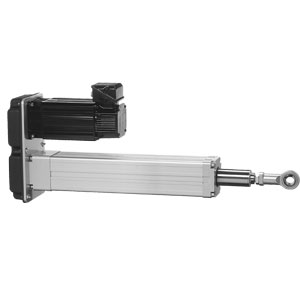

Linear Actuator, Precision, Belt Gear Driven Ball Screw, 100 mm Stroke, 20 mm move per rev, Parallel

Brushless AC servo motor

Extruded anodized aluminum cover tube

Anodized aluminum housing

Hard chromed steel extension tube

Robust and reliable

IP65 standard, wash down protected versions available

Can be installed in all directions

Mounting accessories according to hydraulic cylinder standards available

Large range of options and accessories

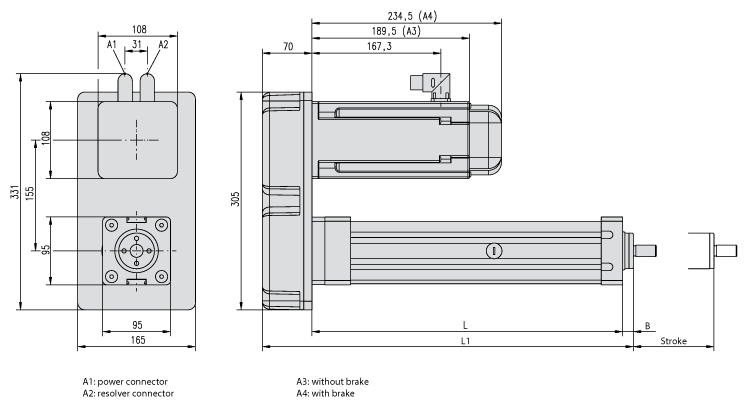

{tab title="DIMENSIONS" }

Dimensions  Value
[B]12 mm
 [L]330 mm
[L1]412 mm
Screw Diameter, Nominal32 mm
Shaft Configuration  Parallel
Smax (Stroke) 100 mm

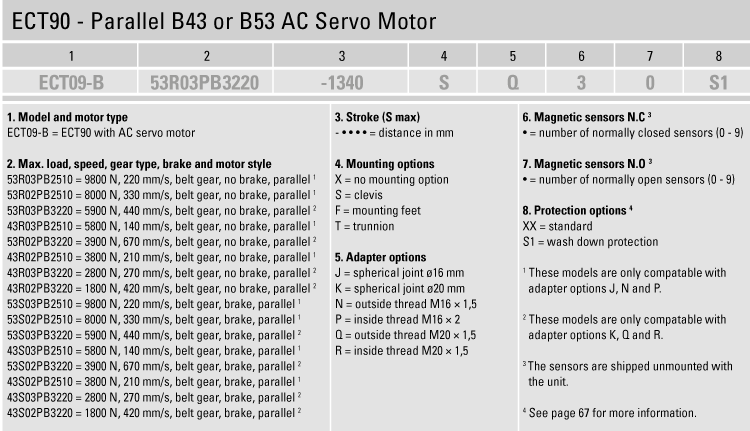

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
