ECT13-B53R10LP4010-0153XX00XX-

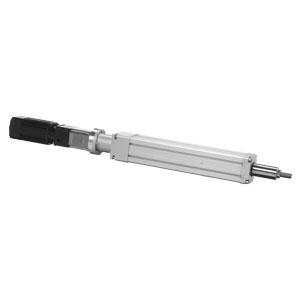

Linear Actuator, Precision, Planetary Gear Driven Ball Screw, 153 mm Stroke, 10 mm move per rev, Inline

Brushless AC servo motor

Extruded anodized aluminum cover tube

Anodized aluminum housing

Hard chromed steel extension tube

Robust and reliable

IP65 standard, wash down protected versions available

Can be installed in all directions

Mounting accessories according to hydraulic cylinder standards available

Large range of options and accessories

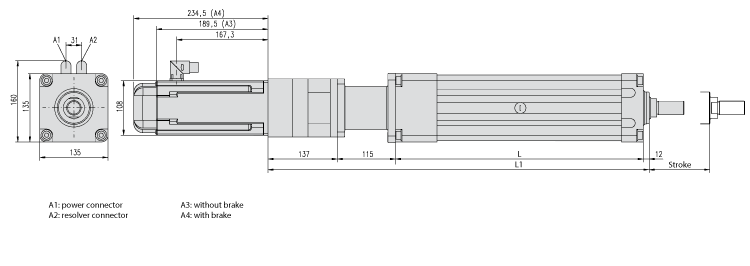

{tab title="DIMENSIONS" }

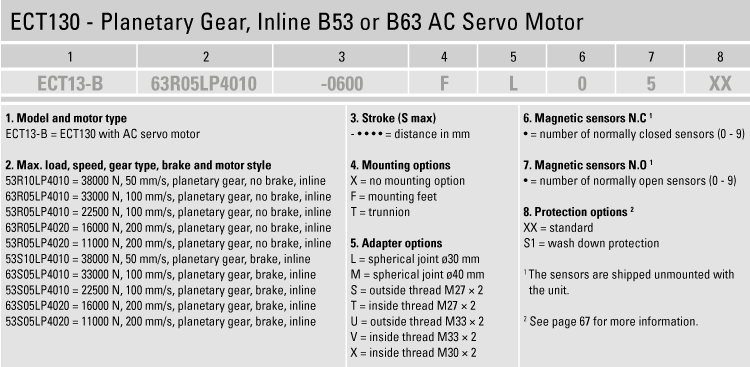

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
